产品详情

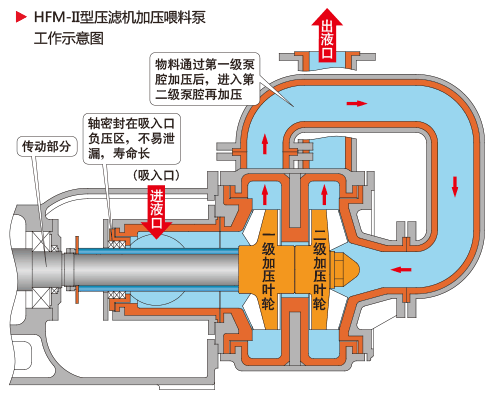

HFM系列无泄漏耐腐耐磨泵是一种新型的衬里型后吸式(轴密封位置与进液口同向)的耐腐耐磨泵。该泵是总结了普通耐腐耐磨泵,在运行时,密封容易泄漏的情况下开发的一种新型压力输送泵。其主要特点是:

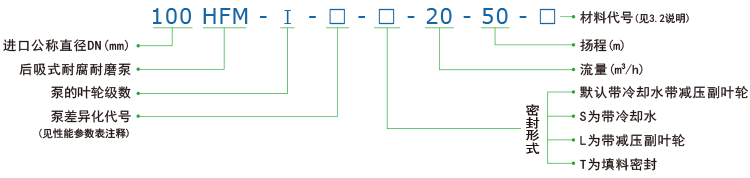

一、型号说明

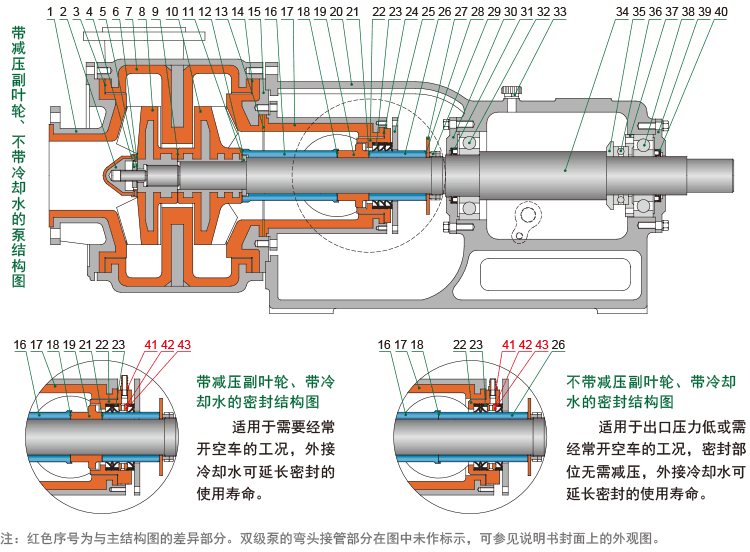

HFM-2型双级压滤机泵结构图

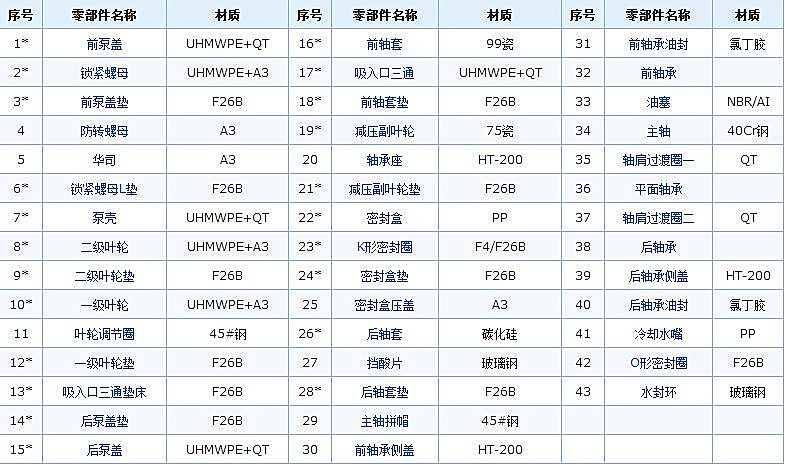

注:序号后带有"*"标志的为易损件,供用户采购备件参考

减压副叶轮(19)主要起平衡流体压力的作用。
本说明书中的规格型号默认均指带减压副叶轮带冷却水的泵;如客户需使用不带冷却水或不带减压副叶轮的泵,请与我公司销售部联系,以便备案存档。


  HFM-II型双级泵的性能参数表

序号规格参考型号流量
(m3/h)
扬程
(m)
配备电机转速
(r/min)
重量
(kg)
进口×出口
直径(mm)
165HFM-II65HFM-II-10-60106011kW-2290046065×50
265HFM-II-10-70107011kW-22900460
365HFM-II-10-80108015kW-22900480
465HFM-II-10-90109015kW-22900480
565HFM-II-10-1001010022kW-22900550
665HFM-II-15-60156011kW-22900460
765HFM-II-15-70157015kW-22900480
865HFM-II-15-80158015kW-22900480
965HFM-II-15-90159018.5kW-22900520
1065HFM-II-15-1001510022kW-22900550
1165HFM-II-20-60206015kW-22900480
1265HFM-II-20-70207015kW-22900480
1365HFM-II-20-80208018.5kW-22900520
1465HFM-II-30-60306018.5kW-22900520
1565HFM-II-30-70307022kW-22900550
1665HFM-II-30-80308022kW-22900550
1765HFM-II-30-90309030kW-22900580
1865HFM-II-30-1003010037kW-22900630
1980HFM-II80HFM-II-20-60206015kW-2290049080×65
2080HFM-II-20-70207015kW-22900490
2180HFM-II-20-80208018.5kW-22900530
2280HFM-II-30-60306018.5kW-22900530
2380HFM-II-30-70307022kW-22900560
2480HFM-II-30-80308022kW-22900560
2580HFM-II-30-90309030kW-22900580
2680HFM-II-30-1003010037kW-22900630
2780HFM-II-40-60406018.5kW-22900530
2880HFM-II-40-70407022kW-22900560
2980HFM-II-40-80408030kW-22900580
3080HFM-II-40-90409030kW-22900580
3180HFM-II-40-1004010037kW-22900630
3280HFM-II-H280HFM-II-H2-30-70307015kW-4145090080×65
3380HFM-II-H2-30-1203012030kW-22900900
3480HFM-II-H2-40-1004010030kW-22900900
3580HFM-II-H2-45-65456518.5kW-41450900
36100HFM-II100HFM-II-40-60406018.5kW-22900540100×80
37100HFM-II-40-70407022kW-22900570
38100HFM-II-40-80408030kW-22900590
39100HFM-II-50-60506022kW-22900570
40100HFM-II-50-70507030kW-22900590
41100HFM-II-50-80508030kW-22900590
42100HFM-II-50-90509037kW-22900680
43100HFM-II-50-1005010045kW-22900710
44100HFM-II-60-55605530kW-22900590
45100HFM-II-60-60606030kW-22900590
46100HFM-II-60-70607037kW-22900680
47100HFM-II-60-80608037kW-22900680
48100HFM-II-60-90609045kW-22900710
49100HFM-II-70-50705030kW-22900590
50100HFM-II-70-60706037kW-22900680
51100HFM-II-70-70707037kW-22900680
52100HFM-II-70-80708045kW-22900710
53100HFM-II-70-90709055kW-22900800
54100HFM-II-80-50805037kW-22900680
55100HFM-II-80-60806037kW-22900680
56100HFM-II-80-70807045kW-22900710
57100HFM-II-80-80808055kW-22900800
58100HFM-II-80-90809055kW-22900800
59100HFM-II-H2100HFM-II-H2-60-70607030kW-414501000100×80
60100HFM-II-H2-60-1206012045kW-229001000
61100HFM-II-H2-80-60806030kW-414501000
62100HFM-II-H2-80-1008010055kW-229001000
63125HFM-II-H2125HFM-II-H2-35-1103511045kW-22900760125×100
64125HFM-II-H2-70-1007010055kW-22900820
65125HFM-II-H2-80-50805037kW-22900730
66125HFM-II-H2-80-60806037kW-22900730
67125HFM-II-H2-80-70807045kW-22900760
68125HFM-II-H2-80-80808055kW-22900820
69125HFM-II-H2-80-90809055kW-22900820
70125HFM-II-H2-100-801008055kW-22900820

注:泵差异化代号中的H2为高扬程泵,与常规泵零部件不通用,具体请与我公司确认;
  表中配备电机功率是在密度ρ=1时的参考值,实际电机功率应大于轴功率×介质密度ρ。
